Framed Low Iron Tempered Glass Polycrystalline Silicon Solar PV Panel

Ask Lasest Price
Brand Name :	NACYC ENERGY
Model Number :	DS-165P6-36
Certification :	CE,SGS,TUV
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	300 kilowatts per month
Delivery Time :	Shipped in 15 days after payment

Add to Cart

Product Details
Company Profile

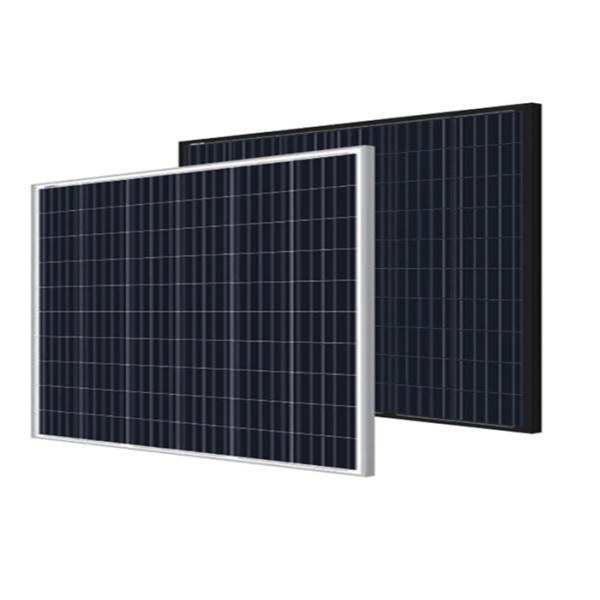

Framed Low Iron Tempered Glass Polycrystalline Silicon Solar PV Panel

Whit Color Low Iron Tempered Glass Solar PV Panel Poly-crystalline Silicon Solar Module

Product usage

1. Application: Home&Residental; Commericial; Industrial; Large scale development

2. Solar system type: on grid solar system; off grid solar system; Hybrid solar system

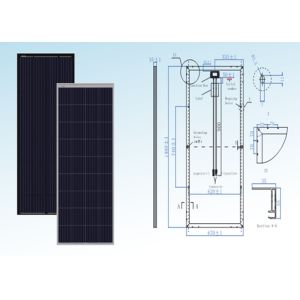

Product parameters

Solar size	1480mm670mm35mm
Weight	12KGS
Framed	Anodized aluminium alloy
Cell type	156mm*156mm
Front Glass	3.2mm low iron tempered glass
standards	CE; SGS; TUV
Junction box	IP65
Backsheet	White
Connector	MC4 or MC4 Compatible
Cell number	36pcs (4*9)
Warranty	Ten years warranty
Duratiom	More than 20 years

Product advantage

1. 10Ys Products Warranty; 25Ys Warranty on power output; PID Resistant; Positive tolerance 0/+5w guaranteed;

2. Excellent low light performance, on cloudy days, mornings and evening.

3. Designed for high voltage systems of up to 1500 VDC, increasing the string length of solar systems and saving on BoS costs;
4. Microcrack resistant Double glass structure enhance reliability, triple EL tested of high quality control;

5. Entire module certified to with stand extreme wind (2400 Pa) and snow loads (5400 Pa);

6. All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output.

7. Unique cell with 5 bus-bar for higher efficiency and module stability.

Framed Low Iron Tempered Glass Polycrystalline Silicon Solar PV Panel
