Triangular Preassembled Flat Roof Solar Mounting System

Ask Lasest Price
Brand Name :	Nacyc
Model Number :	Venus
Certification :	SGS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10 Megawatts per month
Delivery Time :	Shipped in 15 days after payment

Add to Cart

Product Details
Company Profile

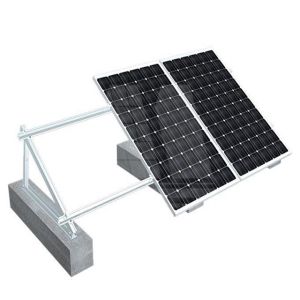

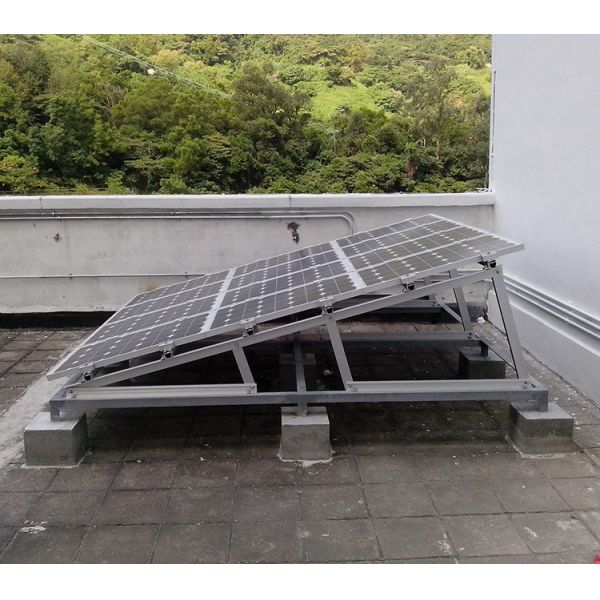

Triangular Preassembled Flat Roof Solar Mounting System

Easy Installation Pre-assembly Flat Roof Solar Mounting System Triangle Frame

The Solar Tripod system will suitable for the application of various types of flat roof because the variable tilt angle, ballasted solutions and roof penetration. The high pre-fabrication level reduced installation times and the costs. Optimization materials use, structure verification approval by wind load and snow load testing.

Design Features:

① Suited for concrete flat roof and metal roof.

② Adjustable type structure which has 3 angle range for options: 10-15°,15-30°, 30-60°.

③ All the components will be pre-assembled.

Step 1

Place the front and back feet and then fix them into roof surface:

-- metal roof: fixed with self-tapping bolt M6.3*80

-- flat roof: fixed with anchor bolt M8/10*100.

Step 2

Fix Art Sign Rails with the legs.

Step 3

Solar panel installation, fix them with mid clamp, end clamp.

Product name	Portable Solar Structure Triangle Flat Roof Mounting System Adjustable Easy Install Tilt Racking Bracket
Application	Ground and Roof
Max. wind speed	40m/s
Modules	Framed
Orientation	Landscape & Portrait
Foundation	Ground & concrete block
Material	Q235 steel, hot galvanizing, SUS304
Warranty	10 years

Triangular Preassembled Flat Roof Solar Mounting System
